Rádiós jeltovábbítók

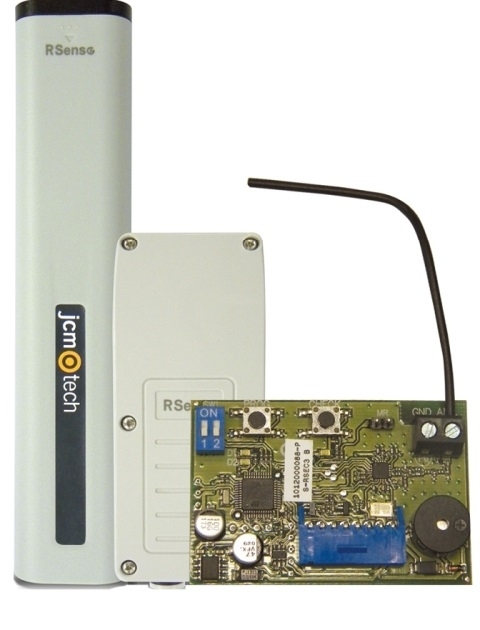

RADIOSENS3
Radio system with 4 self-adjusting communication channels for the detection of impact with no safety edge.
RS3 TGL868 · RS3 T868 · RSEC3
Transmitters
Ref: 1003497
Transmitter for the detection of impact with no safety edge.
Operating frequency 868MHz.
Multi-frequency system: 4 self-adjusting channels at 868 MHz.
Power radiated < 1mW.
Power: 3Vdc (2 x 1.5V LR6 AA).
Operating temperature: -20°C to 55°C.
Tightness level: IP22.
Standby/operating consumption: 0.1mA/12mA.
Range: 50 meters.
Battery life: in accordance with the battery life table.
Dimensions: 40 x 194.5 x 20mm.
Maximum slat length: 4 meters.
Ref: 1003495
Transmitter for the detection of impact with no safety edge.
Operating frequency 868MHz.
Multi-frequency system: 4 self-adjusting channels at 868 MHz.
Power radiated < 1mW.
Power: 3Vdc (2 x 1.5V LR6 AA).
Operating temperature: -20°C to 55°C.
Tightness level: IP65.
Standby/operating consumption: 0.1mA/12mA.
Range: 50 meters.
Battery life: in accordance with the battery life table.
Dimensions: 40 x 194.5 x 20mm.
Maximum slat length: 4 meters.
Receivers
Ref: 1003507
Impact detector receiver without safetey edge.
Operating frequency 868MHz.
Multi-frequency system: 4 self-adjusting channels at 868 MHz.
Power radiated < 1mW.
Power supply: 12Vdc from the control panel.
Memory: 1 transmitter.
Operating temperature: -20ºC a 85ºC.
Standby/operating comsumption: 0.1mA/12mA.
Range: 50 meters.
